LEGO Vacuum Engine: Airflow, Friction, and a Compact Throttle
Share
KFPlus Lego Mastery's version-five LEGO vacuum engine tutorial is built around a clear mechanical goal: move air efficiently while reducing resistance. The creator describes a design capable of more than 6,000 RPM, with attention given to lubrication, the piston and valve assembly, crankshaft, flywheel, and a compact slide-style throttle.
The main building lesson
Fast mechanisms depend on the whole system, not one impressive component. A light piston is less useful if the crank binds, and a smooth crank cannot compensate for restricted airflow. Treating the engine as a chain of connected losses makes tuning more methodical.
Why it matters
Technic experiments often improve through small comparisons. Builders can check whether an axle turns freely before adding the cylinder, whether the valve timing remains consistent through a full rotation, and whether the flywheel carries the mechanism past its tightest point. Changing one variable at a time makes the result easier to understand.
Try this in your own build
Make a hand-powered piston-and-crank test rig without connecting a vacuum source. Use a marked beam as the flywheel and rotate it slowly through several cycles. Find the point with the most resistance, adjust one alignment or support, and repeat. The goal is not speed; it is an evenly moving mechanism that is ready for later airflow tests.
Watch the original video
Original video by KFPlus Lego Mastery. All video rights belong to the original creator.

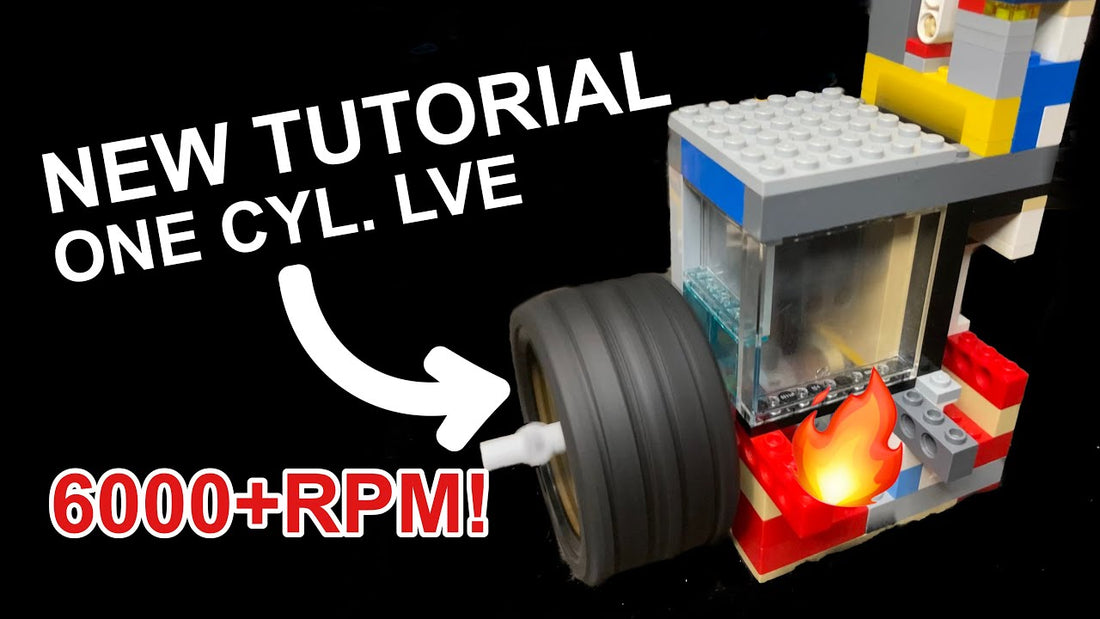

Featured thumbnail is from the original YouTube video by KFPlus Lego Mastery. All thumbnail rights belong to the original creator.
