Six LEGO Steering Systems Tested on Parking and Slalom Courses

LEGO steering systems can look deceptively simple until the same vehicle must make a tight parking turn and then weave cleanly through a slalom. Dr. Engine builds six cars around six distinct steering ideas: tailwheel steering, four-wheel synchronized steering, fork steering, axle-pivot steering, skid steering and rack-and-pinion steering.

The comparison is valuable because each mechanism faces the same two tasks. A parking challenge rewards a small turning footprint and precise low-speed control, while a slalom asks the chassis to change direction repeatedly without becoming unstable or difficult to aim. That shared test format turns a collection of mechanisms into a practical design study for LEGO Technic builders.

Video by Dr. Engine. All video rights belong to the original creator.

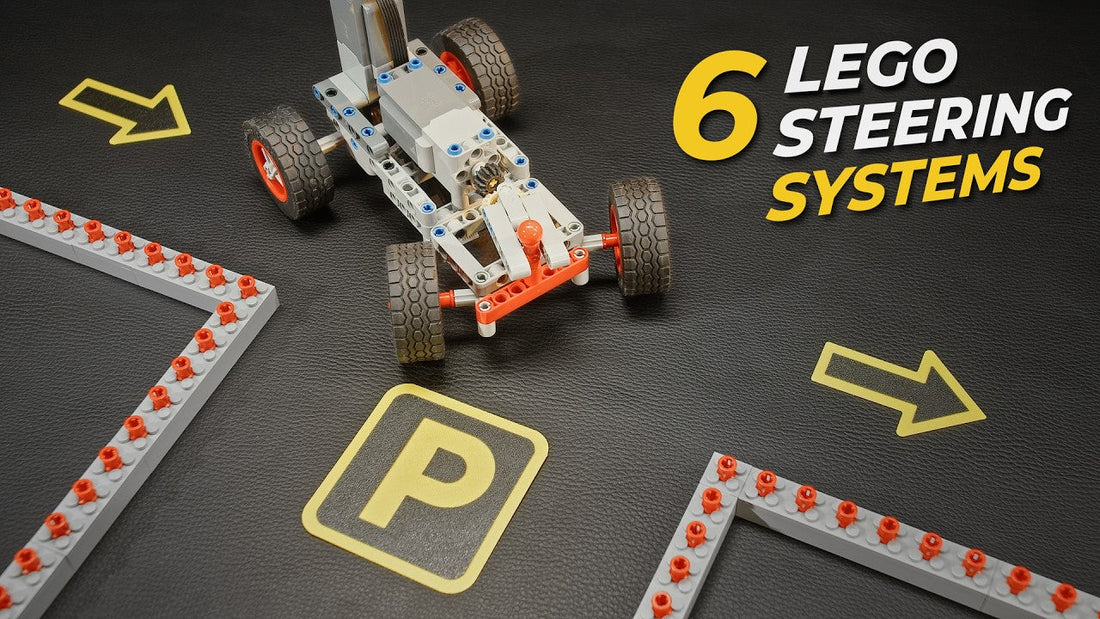

Featured thumbnail is from the original YouTube video by Dr. Engine. All thumbnail rights belong to the original creator.

Six Ways to Change a LEGO Car’s Direction

The video begins with tailwheel steering, where a small rear wheel provides the steering input. This layout separates the steering function from the main forward-running wheels and can produce a compact, lightweight chassis. Its unusual control position also changes how the rear of the vehicle swings during a turn, which becomes important when lining up for a parking space.

Four-wheel synchronized steering links the front and rear axles so both ends contribute to the turn. When the pairs steer in opposite directions, a vehicle can reduce its turning circle. The price is added linkage, tighter packaging and a greater need for accurate alignment. Even a small difference between the front and rear steering angles can create tire scrub or make the chassis track unevenly.

Fork steering uses a wheel or wheel pair mounted in a rotating fork. The arrangement is familiar from bicycles and simple carts: it offers a clear pivot and can be built with relatively few parts. The challenge is supporting the fork firmly enough that it does not flex under a motorized vehicle’s weight while still leaving room for the wheel to rotate freely.

Axle Pivot, Skid Steering and Rack-and-Pinion

Axle-pivot steering turns an entire axle assembly rather than steering the wheels independently. It is mechanically direct and well suited to compact experimental vehicles, but the moving axle needs enough clearance from the chassis. Builders also have to manage the way the whole wheel pair sweeps through space, especially when bodywork sits close to the tires.

Skid steering removes a conventional steering linkage altogether. Direction changes come from driving the left and right sides at different speeds, or in opposite directions. That makes it a natural fit for tracked vehicles and some four-wheel platforms. It can turn very tightly, but the tires or tracks must slide across the surface, so grip, motor torque and vehicle weight all become part of the steering system.

Rack-and-pinion steering is the most recognizable Technic solution in the lineup. A rotating gear moves a toothed rack from side to side, which pushes steering links connected to the front wheels. The layout provides predictable motion and works well with a steering wheel, servo or hand-of-god control. It also asks for careful bracing: the pinion and rack must remain engaged under load, and the steering arms should avoid unwanted play.

Why Parking and Slalom Tests Reveal Different Weaknesses

The parking challenge begins after all six mechanisms have been demonstrated. It focuses attention on turning radius, controllability and the path taken by both ends of the car. Tailwheel and axle-pivot layouts can make the rear or entire axle sweep differently from a front-steered car, while synchronized four-wheel steering and skid steering approach tight spaces through very different kinematics.

The later slalom challenge changes the priority. Rapid left-right transitions expose looseness in linkages, slow response, excess tire scrub and chassis weight transfer. A mechanism that can rotate sharply in a confined area may still demand more correction between gates. Conversely, a layout with a wider turning circle can feel more progressive and easier to place when the direction changes are repeated.

Using both courses is the strongest part of the comparison. It prevents a single dramatic maneuver from defining the result and reminds builders that steering is always tied to the intended job. A warehouse vehicle, crawler, race car and compact city model can all justify different answers.

Builder Lessons from the Six LEGO Steering Systems

• Choose the test before the mechanism. Decide whether the model needs a tiny turning circle, smooth high-speed response or simple packaging.
• Prototype without bodywork. Watch the tires, links and axle pivots through their full travel before enclosing the chassis.
• Remove play at every joint. Small gaps in several connections can add up to vague steering at the wheels.
• Brace the input. A rack, fork or pivot that moves away from its intended plane will waste motion and reduce consistency.
• Test on the real surface. Skid steering and tight-angle layouts behave differently as tire grip changes.

Final Thoughts

Dr. Engine’s six-car experiment shows that a LEGO steering system cannot be judged by complexity alone. Tailwheel, synchronized four-wheel, fork, axle-pivot, skid and rack-and-pinion layouts each reorganize the same basic problem: how to turn the vehicle without sacrificing too much space, stability or control. The parking and slalom courses make those tradeoffs visible and offer MOC builders a repeatable way to test their own chassis before committing to bodywork.
