LEGO Technic Control Methods Compared for Custom Vehicles

Choosing a LEGO Technic control method changes much more than the way a motor starts. It affects steering feel, response time, wiring, weight, packaging, and how naturally a driver can operate several functions at once. Dr. Engine compares multiple approaches on the same machine, moving through battery-box control, a dual-box arrangement, a wired control frame, infrared remote control, and a smart-brick solution.

Using one vehicle as the test platform makes the comparison especially useful for MOC builders. The chassis and mechanical load stay familiar while the input method changes. That puts attention on the practical question behind every powered custom build: should the model prioritize simplicity, tactile control, wireless freedom, programmable behavior, or compact installation?

Video by Dr. Engine. All video rights belong to the original creator.

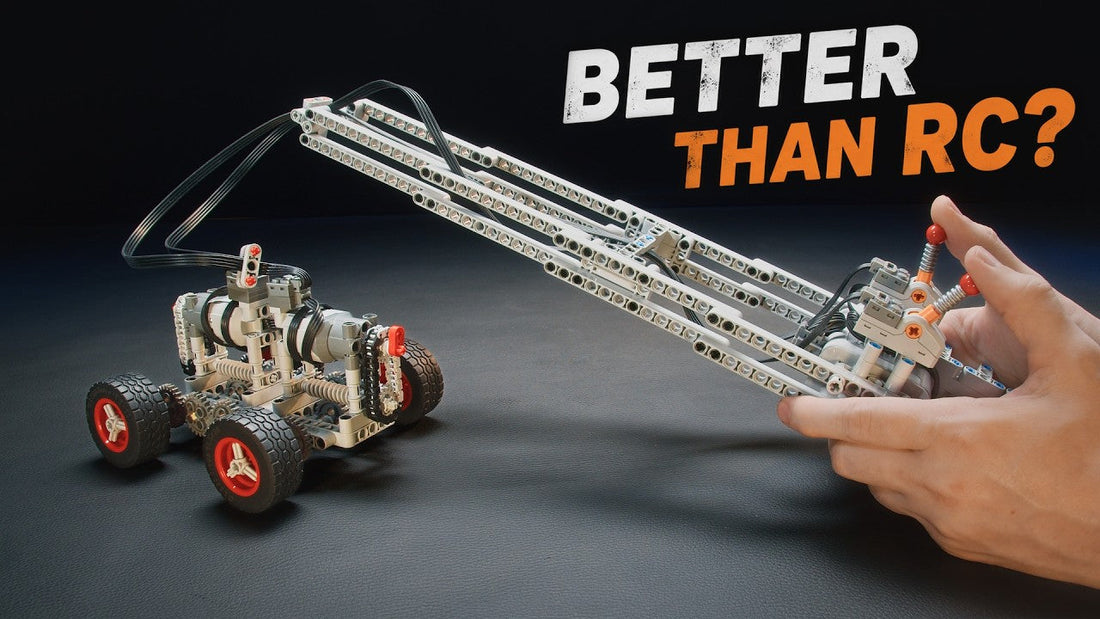

Featured thumbnail is from the original YouTube video by Dr. Engine. All thumbnail rights belong to the original creator.

Five stages of LEGO Technic control

The comparison begins with a LEGO battery box, the most direct arrangement in the lineup. A simple switch can be ideal for a function that needs only forward, stop, and reverse. It keeps the electronics understandable and can make troubleshooting straightforward because the power source and input are physically close to the mechanism.

The dual battery box stage adds another layer. Separate power and switching can help divide drive and auxiliary functions, but the vehicle must carry additional mass and provide room for two sizable components. That tradeoff matters in compact Technic vehicles, where a battery box is also a structural object that can affect balance and access.

Next comes the wired control frame. Physical joystick controllers give the operator tactile feedback and a fixed sense of direction. A builder can feel where the controls are without looking away from the model, and paired levers suit machines that steer by varying the speed or direction of left and right drive systems. The cable keeps the link direct, although it also limits how far the vehicle can travel.

The infrared remote control removes that tether. Wireless operation makes a vehicle easier to drive around a floor or demonstration area, and a dedicated handset preserves physical controls. The practical design challenge is placement: the receiver needs a useful line of sight, while motors, gearing, and bodywork still need to fit around it.

The final stage uses a smart brick, bringing phone-based control and programmable options into the comparison. Smart control can combine several channels, custom screen layouts, and more advanced behavior. It also changes the driving experience because a flat touchscreen does not offer the same physical centering and resistance as a joystick.

Physical joysticks versus a smartphone app

For a fast custom vehicle, physical controls can make direction changes feel immediate. A lever has travel, a center point, and a position the hand can recognize. That is valuable when steering and throttle must be adjusted together. Tracked vehicles and skid-steer machines are a natural fit because two controls can map directly to the left and right sides.

A smartphone offers a different strength: flexibility. The interface can be arranged around the model rather than forcing the model to match a fixed remote. Extra functions such as lights, a grabber, a winch, or a gearbox can receive their own buttons or sliders. Builders can also revise the control layout without rebuilding the handset.

The decision is therefore not simply wired versus wireless or old versus new. It is a question of feedback and configuration. A display model with one motorized function may benefit from a simple switch. A mobile machine with precise steering may feel better with physical joysticks. A complex multi-function MOC may justify a smart hub and app because the control surface can grow with the model.

Design the electronics with the mechanics

Control components should be part of the chassis plan from the beginning. Battery boxes need secure mounting and easy access. Receivers need sensible placement. Wires need routes that avoid gears, steering links, and suspension travel. A removable body panel can turn battery replacement from a partial rebuild into a quick service step.

Weight distribution is equally important. A heavy power source mounted high can make a vehicle unstable, while a central low position can improve traction and balance. On a skid-steer machine, left and right drive paths should be mechanically similar so the controller is not compensating for unequal gearing or friction.

A practical checklist for your next powered MOC

• Count independent functions: drive, steering, lifting, lights, and tools may each need a channel.
• Choose the desired feedback: decide whether tactile levers or a configurable screen better fits the model.
• Plan service access: batteries, hubs, and plugs should be reachable without dismantling the chassis.
• Test under load: a control setup that works on a stand may feel different once the full model is moving.
• Protect moving parts: route cables away from axles, gears, tracks, and articulated joints.

Final Thoughts

Dr. Engine’s LEGO Technic control comparison is valuable because it treats the controller as part of the machine. Battery boxes reward simplicity, wired frames deliver direct tactile input, infrared remotes add freedom, and smart bricks support adaptable multi-function control. None of those strengths matters in isolation; the best choice is the one that fits the model’s functions, scale, and intended driving experience.

For MOC builders, the central lesson is to prototype the controls early. A vehicle should not be fully finished before anyone asks how it will be driven, powered, charged, and serviced. When electronics and mechanics are designed together, the result feels less like a motorized display and more like a complete working machine.
