LEGO Car vs Giant Speed Bump: Six Engineering Approaches

A giant speed bump turns an ordinary LEGO car problem into a compact engineering course. Brick Technology tests a sequence of vehicles against increasingly difficult obstacles, moving through suspension, a stair climber, a multi-wheel chassis, a walker, a jumper and an elevator mechanism. Each design changes the question from “Can the car drive over it?” to “What motion does the chassis need next?”

The experiment is useful for Technic and MOC builders because the obstacles expose more than raw motor power. Wheelbase, ground clearance, weight distribution, pneumatic motion, sensor placement and automatic mechanisms all affect whether a vehicle can approach, climb and clear a large step without becoming stuck.

Video by Brick Technology. All video rights belong to the original creator.

Featured thumbnail is from the original YouTube video by Brick Technology. All thumbnail rights belong to the original creator.

Suspension Is the First Line of Defense

The opening approach uses suspension, the most car-like answer to a raised obstacle. Suspension lets the wheels move relative to the chassis, helping them maintain contact while the body stays more level. For a large bump, however, spring travel is only part of the problem. The front overhang must avoid striking the obstacle, the wheels need enough diameter to begin climbing, and the underside needs clearance after the first axle rises.

Weight distribution matters just as much. If too much mass sits behind the driven wheels, the front may lift without climbing. If the vehicle is nose-heavy, the suspension can compress before the tires gain useful height. A LEGO suspension prototype therefore needs repeated testing with the battery box, motors and body panels installed in their final positions.

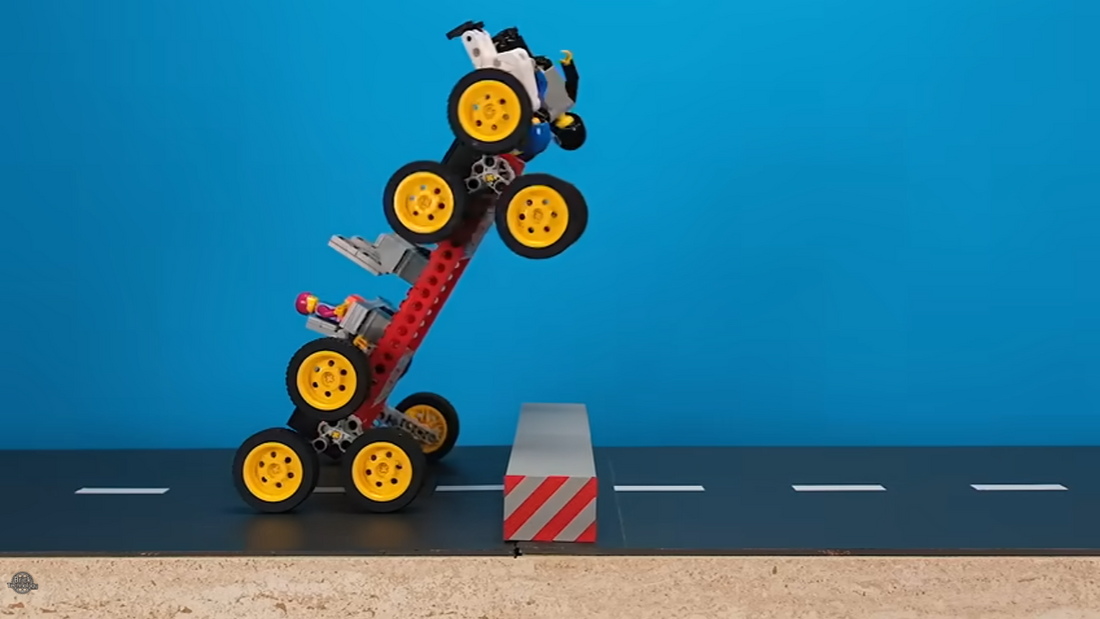

Stair Climbers and Multi-Wheel Chassis Change the Contact Pattern

The stair-climber section moves away from a conventional four-wheel layout. Instead of asking one tire to scale the full face of the bump, a stair-climbing arrangement can create a series of smaller contacts. Rotating wheel clusters, linked arms or other staged mechanisms help lift the chassis in increments.

The multi-wheel vehicle applies a similar principle through contact quantity. Extra wheels can bridge the gap between the ground and the obstacle, keeping part of the chassis supported while another section climbs. The design challenge is coordination: closely spaced wheels can help maintain contact, but they also introduce more axles, friction and opportunities for the frame to snag.

Both approaches demonstrate a valuable MOC technique. When an obstacle is too large for one component, divide the movement into several smaller steps. That can mean more wheels, a rotating assembly or a frame that changes shape as it advances.

A Walker Treats the Speed Bump as Terrain

The walker section abandons continuous rolling. Legs can lift, reach and place a contact point beyond the obstacle instead of following its curved surface. This makes the vehicle less dependent on tire diameter, but timing becomes much more important. The chassis must remain supported while one or more legs move, and the drive mechanism has to produce a repeatable gait.

LEGO walking machines often trade speed for adaptability. Cranks, linkages and synchronized axles must be braced carefully because a small amount of flex can change foot placement. Against a giant speed bump, the approach reframes the task: the model is no longer trying to roll over the shape but to step across it.

Jumping Uses Momentum Instead of Continuous Contact

The jumper appears later in the experiment and introduces a completely different strategy. A jumping mechanism stores or redirects energy so the car can leave the ground and bypass part of the obstacle. That requires control over launch timing, vehicle attitude and landing stability.

Sensors and automatic triggering are especially relevant here. A mechanism that activates too early wastes the jump before the car reaches the bump; too late, and the front of the chassis hits first. The landing also matters because a successful launch is not useful if the model overturns or damages its drivetrain. For builders, the jumper is a lesson in treating approach speed and timing as structural design inputs.

The Elevator Mechanism Lifts the Chassis Around the Problem

The final named approach is an elevator. Rather than improving the wheels, the model adds a mechanism that can raise part of the vehicle relative to the obstacle. This kind of solution can use pneumatic components or a driven lift to reposition the chassis, creating temporary clearance where a fixed frame would bottom out.

An elevator mechanism adds weight and complexity, but it also gives the vehicle a new degree of freedom. The key is making the lifting frame rigid enough to carry the rest of the model without twisting. It must also lower or reset after clearing the bump so the vehicle can continue driving instead of remaining in a one-use configuration.

Builder Takeaways from the Giant Speed Bump

• Measure approach geometry first. Wheel radius, front overhang and ground clearance determine the first point of failure.
• Keep modules easy to swap. A common motor and frame make it easier to compare suspension, wheel clusters and lifting mechanisms.
• Test with final weight. Batteries, motors and bodywork change spring compression, traction and landing behavior.
• Design the reset. Walkers, jumpers and elevators need a reliable return cycle after the obstacle is cleared.
• Use the obstacle as a specification. Build around its height, face angle and width instead of adding power without a geometric plan.

Final Thoughts

Brick Technology’s giant speed-bump challenge is a compact tour of LEGO vehicle engineering. Suspension preserves the familiar car layout; stair-climbing and multi-wheel designs divide the obstacle into smaller contacts; the walker changes rolling into stepping; the jumper uses timed momentum; and the elevator gives the chassis its own lifting motion. The broader lesson is simple: when one form of movement reaches its limit, the best solution may be to invent another.
