LEGO Technic Drop Tower: Turning Gravity into a Thrill Ride

A smart free-fall mechanism you can reuse for amusement-park MOCs, kinetic builds, and more

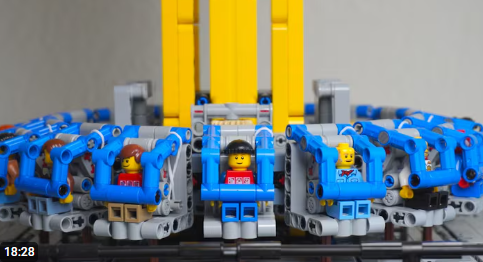

Few Technic builds capture pure drama like a drop tower. You crank (or motorize) a carriage to the top, hear the satisfying click-click-click of a ratchet, and then—whoosh—gravity takes over for a clean, controlled free-fall. The video “Building a LEGO Technic Drop Tower” showcases exactly that experience: a fully functional tower with an authentic lift, safety catch, and release that delivers a convincing plunge. It’s the kind of mechanism that makes spectators gather around your table at a show and ask, “How did you do that?”

At its core, a Technic drop tower is a beautifully balanced system of forces. The tower guides the carriage using stiff liftarm frames or brick-built rails so it moves straight with minimal friction. A lift system—either a gear-rack and pinion or a chain-and-sprocket hoist—pulls the carriage upward. As it climbs, a ratchet (pawl + teeth) or a clutch-based catch keeps the car from sliding back, both for realism and for safety. At the peak, a trigger releases the catch, and the carriage drops. The “magic” is the braking: you can let gravity do the show while cleverly controlling deceleration so it looks thrilling without slamming at the bottom. Builders often do this with rolling resistance (wheels on axles), soft bumpers (rubber elements), staged friction, or even a magnetic “eddy current” style effect using safe, LEGO-friendly spacing and non-contact drag concepts.

What makes the featured build so reusable for other MOCs is the modularity of its subsystems. The lift can be turned by a hand crank for tactile play or powered with a motor (Power Functions / Powered Up / Control+), and the release can be mechanical (cam + lever) or servo-driven. The carriage can be re-skinned in any theme—classic fairground, cyberpunk test chamber, sci-fi cargo drop, even a “haunted elevator.” With Technic, you’re not locked into one scale either. Narrowing the car and rails gives you a compact tabletop demo; bulking up the tower with doubled columns and cross-bracing makes it a convention-ready centerpiece. The end result is a kinetic sculpture that blends engineering with theater: anticipation on the way up, then a quick rush down, and finally a gentle, satisfying stop—ready to run again for the next round of applause.

Tips: How to Build & Use This Mechanism

• Design the rails first. Build two straight, rigid columns tied together with frequent cross-braces. Test the carriage (empty) for smooth travel before adding the lift.

• Choose your hoist wisely.

  • Gear rack + pinion = simple and precise.

  • Chain + sprockets = authentic “industrial” vibe and easy routing around idlers.

• Add a reliable safety catch. A simple pawl that drops into a tooth at intervals prevents backsliding on the way up and adds the iconic ratchet sound.

• Stage the release. Use a cam or stop at the top that nudges the pawl out of engagement; make sure it resets automatically when the car passes again.

• Control the stop, not the drop. Let gravity handle the free-fall, then manage deceleration with rubber bumpers, rolling contact on the final segment, or a secondary catch to absorb energy over a short distance.

• Motorization tips. If you add a motor, gear it down for torque and control. Include a clutch gear or slip mechanism to protect the drivetrain at end stops.

• Kid-safe testing. Start with half-height drops and slowly increase height as you tune the brake/buffer. Keep fingers clear of the ratchet and hoist.

• Showmanship. Add lights, a countdown indicator, sound effects, or signage so the crowd knows when the drop is coming.

Ideas: MOCs That Use This Drop-Tower Technique

• Fairground Free-Fall Ride: Reskin the carriage to hold minifigs, add a ticket booth and queue rails, and sync lights to the lift cycle.

• “Haunted Elevator” Diorama: A façade with opening doors, spooky lighting, and a sudden “ghostly” plunge.

• Sci-Fi Test Chamber: Drop a cargo pod into a cushioned bay; integrate pneumatic hoses and hazard stripes for an industrial look.

• Spaceport Drop-Capsule Trainer: Astronaut trainees experience short, controlled drops; add telemetry screens and control room details.

• Mine Shaft Demonstrator: A rugged, timber-framed tower that lowers/raises ore carts—then demonstrates a brake failure test (safely!).

• STEM Classroom Model: Expose the mechanism with transparent panels and labeled subsystems (hoist, ratchet, release, buffers) for teaching energy, forces, and safety systems.

• Microscale Tabletop Showpiece: A skinny, 6–8-stud-wide tower that fits on a shelf, perfect for motorized “set-and-forget” operation during events.

A Technic drop tower is more than a gimmick—it’s a miniature lab in motion design, safety engineering, and showcraft. Start with a stable frame, refine the lift and catch, give the drop a clean path, and then focus your creativity on the theme. Whether you’re building a bustling fairground, a spooky hotel, or a futuristic training facility, this mechanism delivers repeatable thrills and an irresistible “one more time!” factor. If you loved the detailed look and authentic free-fall in the video that inspired this guide, use it as your blueprint—then make it your own with smart braking, crisp styling, and a dash of drama. Happy building and safe dropping!
