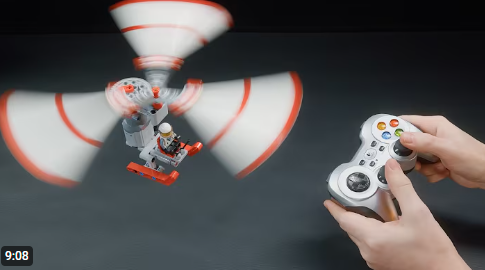

DIY LEGO Technic Remote-Controlled Helicopter

A builder’s guide to lightweight frames, balanced rotors, and smart control—plus ideas for MOCs that use the same technique

A remote-controlled helicopter made from LEGO Technic sounds like pure sci-fi until you see how elegantly the fundamentals come together: a light but rigid frame, a high-RPM rotor that’s carefully balanced, and a control system that translates tiny stick movements into smooth, predictable responses. The beauty of this technique is that it combines three skills you probably already use in other Technic builds—gear reduction, linkages, and weight-optimized structures—and points them at one ambitious goal: sustained, controllable rotor motion that actually generates meaningful airflow and lift. Whether you aim for a tethered “test stand” that demonstrates flight principles or you’re chasing a full RC model with tail-torque management, this approach will sharpen your understanding of both Technic mechanics and real-world rotorcraft.

At the heart of the build is the rotor system. You can start simple with fixed-pitch blades and a single drive geartrain to achieve reliable RPMs, then graduate to a swashplate-style linkage if you want cyclic/collective effects (tilting and changing blade pitch to steer). Many builders discover that the frame matters as much as the rotor: every gram you save in the body gives you headroom for stronger motors, better batteries, or stabilization add-ons. That’s why open trusses, frames, and “just-enough” paneling beat heavy shells. It’s also why you see braced triangles everywhere—rotor vibrations will punish any flex in the mast or gearbox, so triangulate and pin your key joints.

Control can be as classic or as modern as you like. You can run Power Functions/Control+ with handheld remotes for immediate responsiveness, or go app-based with Powered Up or Pybricks to mix channels and create gentle expo curves (so the first half of your stick movement is nice and tame). If you’re experimenting with torque-countering, you’ve got two main roads: tail rotor with a bevel-gear drive and a small dedicated motor, or a coaxial contra-rotating setup that cancels torque at the hub. Coaxial is compact and elegant; tail rotors are intuitive and look “right.” Both reward careful gear ratio choices and good bearings (Technic turntables and frictionless pins are your friends).

Finally, a word on safety and expectations. Spinning rotors store energy—guard your test rig, keep fingers and hair well away, and use a tether for early trials. Remember that LEGO elements are not aerospace-grade; “proof-of-principle flight” often means short hovers, ground-effect demos, or wind-tunnel-style tests where the model is restrained. That’s okay! The goal of this technique is to master the mechanics, tuning, and control logic. Once you’ve got a smooth rotor, a stiff mast, and responsive inputs, you’ve built a foundation you can reuse in dozens of Technic projects—from tilt-rotors to amusement rides to high-airflow gizmos. It’s addictive engineering that will level up your MOC skills fast.

Tips: How to use (and master) this technique

1. Start fixed-pitch. Nail a stable, high-RPM rotor with fixed blades before adding swashplate complexity.

2. Balance matters. Build two identical blades and weigh them; add tiny 1×1 round plates or half-bushings as counterweights until the hub spins without wobble.

3. Gear for head-speed. Aim for a tall final ratio off a strong motor (XL/buggy). Test several reductions; too tall = stall, too short = weak airflow.

4. Stiffen the mast. Use stacked frames and triangles to keep the rotor shaft perfectly vertical; any flex shows up as vibration.

5. Decouple the drive. Add a small turntable or double-bearing support under the hub to reduce friction and axial play.

6. Dampen vibrations. Rubber connectors/axle joiners near the hub can tame resonance without adding much weight.

7. Manage torque. Pick one: (a) tail rotor with a bevel-gear takeoff, or (b) coaxial contra-rotation using two concentric shafts.

8. Tune your control. If using Powered Up/Pybricks, add expo and dead-zone to your throttle/yaw to prevent twitchiness.

9. Go modular. Build the rotor, gearbox, and frame as separate subassemblies so you can swap ratios or blade designs quickly.

10. Test tethered. First runs: anchor the fuselage to a post with a short string to evaluate lift and yaw without risk.

11. Watch temperatures. High RPMs can warm motors; give them airflow and add rest intervals during tuning.

12. Use lightweight cosmetics. If you want a pretty shell, build it last with minimal paneling so performance doesn’t tank.

Ideas: MOCs that benefit from the same rotor/control technique

• Coaxial “Kamov-style” helicopter: Compact hub with counter-rotating blades—no tail rotor needed.

• Search-and-rescue heli with winch: Prioritize stable hover; add a geared down winch and sliding side door.

• Tandem-rotor “Chinook” vibe: Two synchronized rotors with a central gearbox and cargo bay.

• Tilt-rotor (VTOL) transport: Gearbox to rotate nacelles 0–90°; use the same high-RPM rotor units on each wing.

• Autogyro demo rig: Free-spinning top rotor for lift + powered pusher prop—great classroom physics piece.

• Wind-tunnel test stand: A restrained rotor with a force gauge to visualize thrust changes as you tweak pitch/ratio.

• Amusement park “helicopter ride”: Multiple small arms with mini rotors that “look” like lifting, using your balanced-hub know-how.

• Camera gimbal platform: Reuse the anti-vibration tricks to make a 2-axis stabilized mount for filming your other Technic builds.

• Micro-coax trainer: Ultra-light frame, tiny rotors, tethered testing—a safe way to practice tuning.

• Hovercraft with lift fan: Apply rotor balancing to a skirted hovercraft—stable cushion, separate thrust motor.

Mastering a LEGO Technic RC helicopter isn’t just about chasing flight—it’s about learning to design for stiffness, balance, power delivery, and precise control. Build it in stages, test safely, and keep your modules swappable so iteration is fast. Once the rotor spins true and your inputs feel smooth, you’ll find the same technique unlocks a whole family of ambitious MOCs. If you build one, share your photos and what ratios worked best for you—we’d love to feature your version in a future post. Happy building and safe testing!
